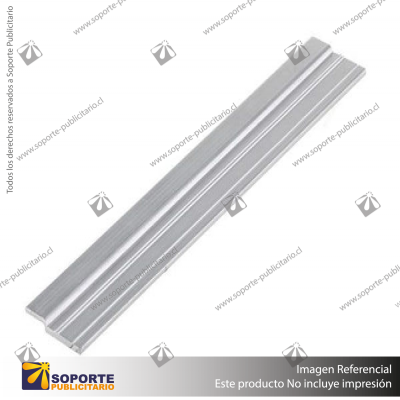

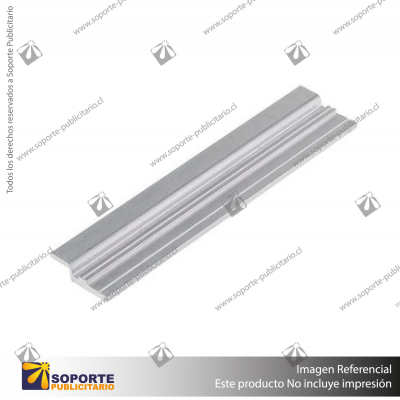

Plankwall® Split Rail is a heavy-duty, easy to use, concealed system for affixing panels and other large artworks to walls. The aluminium extrusions allow for simple panel installation. Strong and durable, no matter the environment. Two aluminium rails can be used interlocking or match a split rail with glass-strengthened acrylic Split Rail Clips.
Choose from
Split Rail MT used for when more tolerance to walls is needed (for older buildings, or uneven walls).
Split Rail for flat, smooth walls and when a closer fit to walls is required.

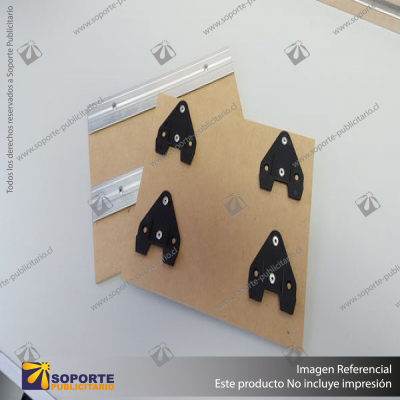

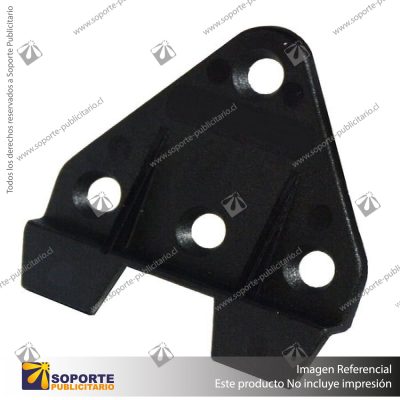

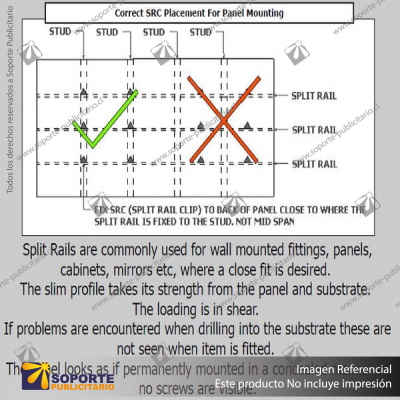

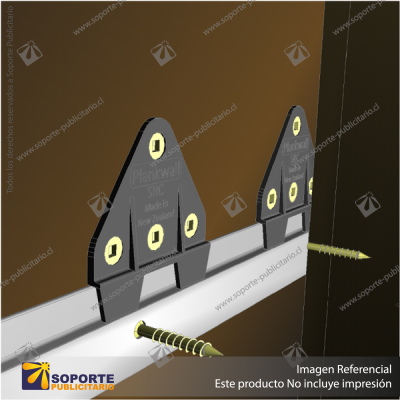

Use Split Rail Clips with Split Rail and Split Rail for attaching smaller panels and artworks.
Product Details:
Dimensions: 2440mm Long and 28mm High

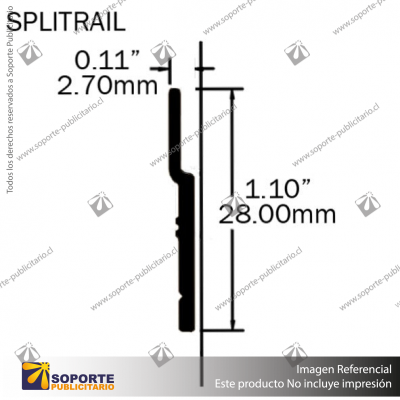

SRAIL clearance to wall: 2.70mm

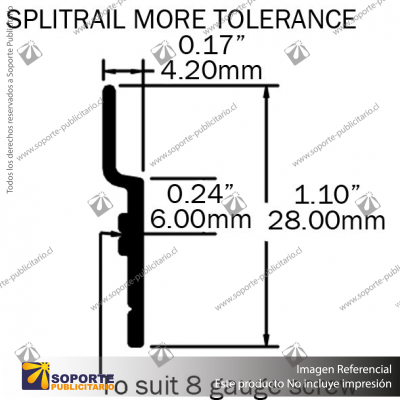

SRAILMT Clearance to wall: 4.20mm
Sold in 5M lengths (can be cut to size for an additional price)
Codes: SRAIL SRAILMT (More Tolerance) SRC (Split Rail Clip)
Part of the Stickman® range of New Zealand designed & produced slimline aluminium extrusions used for joining and edge protection in panel joinery projects. Stickman profiles provide protection and detailing in cabinetry, kitchens, walls, retail and shop fitting designs. Distributed throughout New Zealand, Australia & North America.
For further information visit Stickman.co.nz
